Pedestals for NIVO® tiles
An adjustable, robust and easy-to-install tile support.
- To shim 25 to 530 mm tiles
- Pedestal head with joist support
- Height adjustment by micrometric screw
- Supports up to 1,000 kg
- Compliant with Building Codes
- Made of recyclable polypropylene
Characteristics
40 to 60 mm
50 to 80 mm
80 to 140 mm
140 to 230 mm
>> 560 mm with height extender
CaCO3
60 mm height extender
Adjustment pad for 2 to 5°
To shim 25 to 530 mm high tiles
NIVO® pedestals for concrete, ceramic or wood tiles are offered in 7 heights between 25 to 240 mm, with the possibility of extending their height up to 530 mm.
All of our NIVO® tile pedestals are height adjustable with micrometric screws, thus ensuring the installation of your tile deck with excellent precision. The quality of the material used helps us ensure resistance to any bad weather and UV rays and provide remarkable stability.
NIVO® pedestals all have a Ø20cm = 314cm² base which is large enough to prevent the deck from sinking on stabilized ground. This diameter is of course compliant with Building Codes Deck and Waterproofing. The rotation screw diameter is one of the largest on the market, thus offering excellent pedestal stability.
Our pedestals are all compliant with D.T.U 43 and 51-4. The acceptable load per pedestal is at most 1,000 kg. (compression test report upon request)

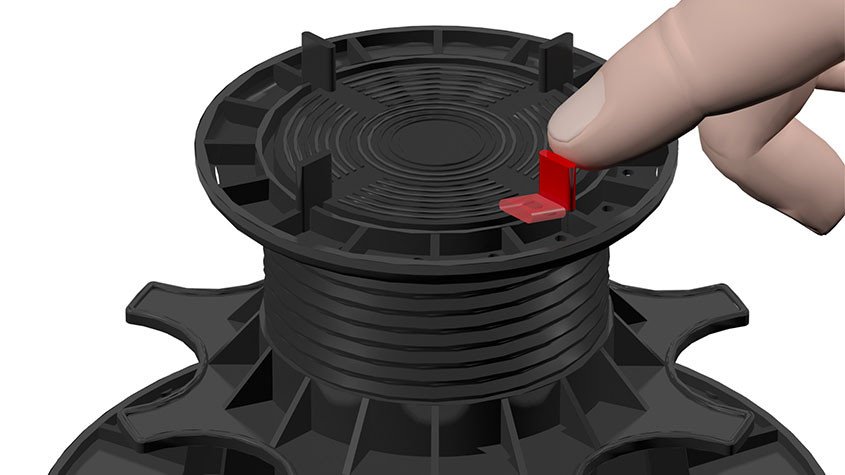

Snap-blade lugs
Each pedestal head is equipped with four snap-blade lugs which can receive any type of tile: wood, gravel, concrete...
Thanks to its rotative screw system, the NIVO® pedestal enables very easy implementation. The adjustment of the structure level is simplified as much as possible.

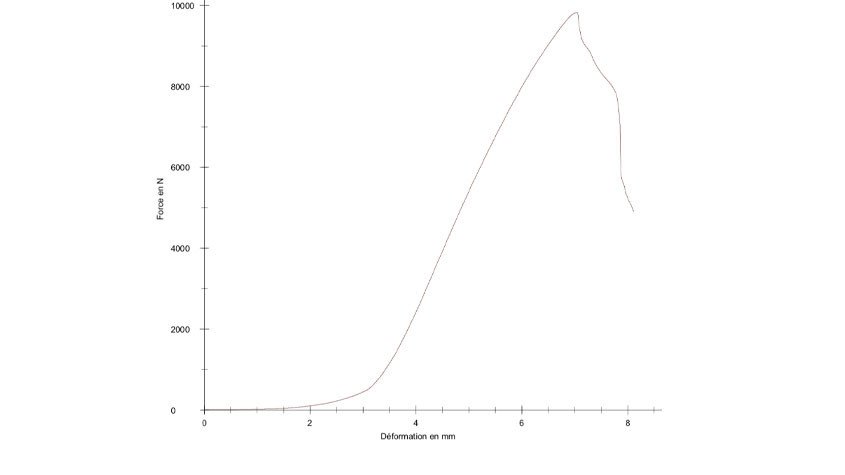

1,000 kg resistance
NIVO® pedestals for tiles, tested in laboratories, offer resistance to 1,000 kg compression.
This high resistance helps to respond to their use as outdoor deck support, in compliance with the requirements of Building Codes.

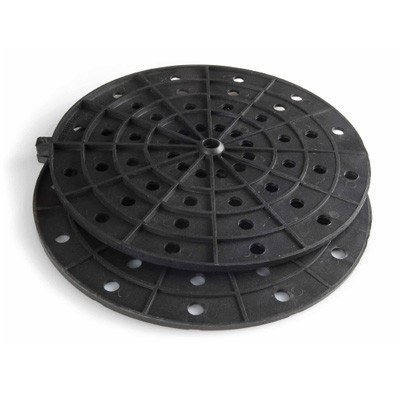

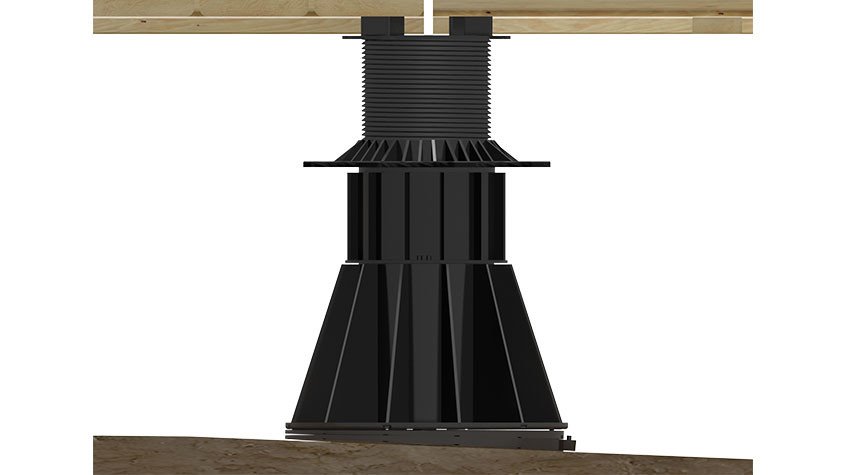

Slope corrector up to 5°
Tile pedestals may correct slopes up to 5°. Correctors are made up of two discs to assemble and position under the base. The adjustment is conducted by simple rotation of the two discs between each other.
Technical diagrams
-

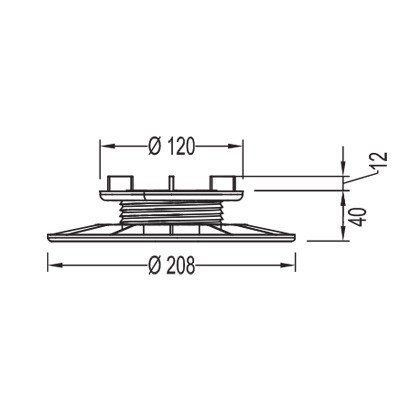

Pedestal 25 - 40 mm- - min. opening: 25mm
- - max. opening: 40mm
- - weight: 0.17kg
-

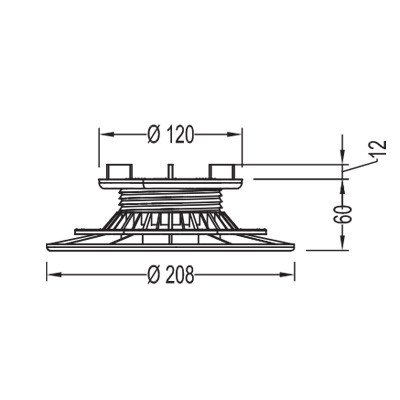

Plot 40 - 60 mm- - min. opening: 40 mm
- - max. opening: 60 mm
- - weight: 0.23 Kg
-

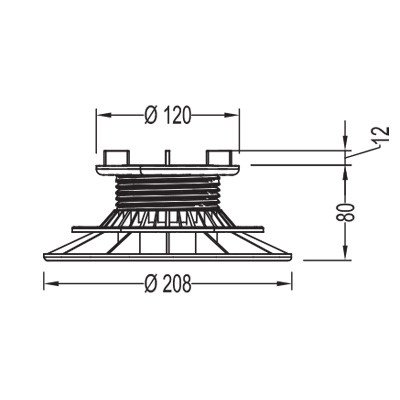

Plot 50 - 80 mm- - min. opening: 50 mm
- - max. opening: 80 mm
- - weight: 0.26 Kg
-

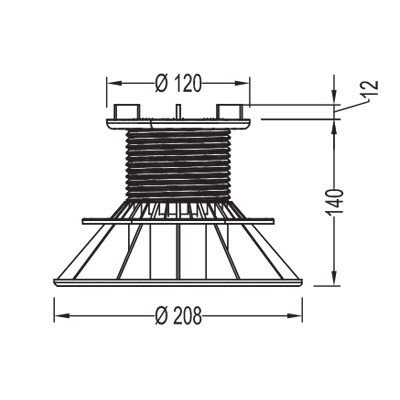

Plot 80 - 140 mm- - min. opening: 80 mm
- - max. opening: 140 mm
- - weight: 0.33 Kg
-

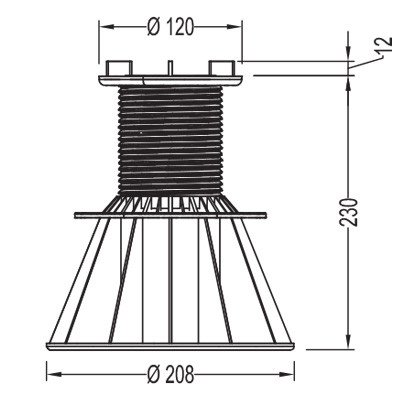

Plot 140 - 230 mm- - min. opening: 140 mm
- - max. opening: 230 mm
- - weight: 0.51 Kg
-

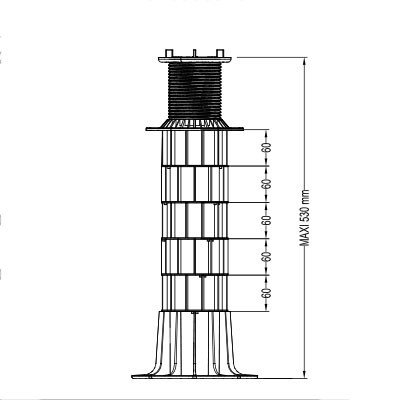

Plot 230 - 530 mm- - min. opening: 200 mm
- - max. opening: 530 mm
The damper buffer softens impacts and improves the acoustic comfort of your deck.

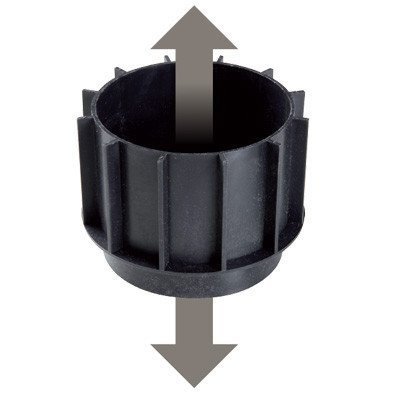

60 mm height extender for 140-230 mm pedestals. Stack up to 5 height extenders one on top of the other to reach a maximum height of 530 mm while keeping a stable seat.
The NIVO® slope corrector ensures a slope correction ranging from 2 to 5% in level difference.

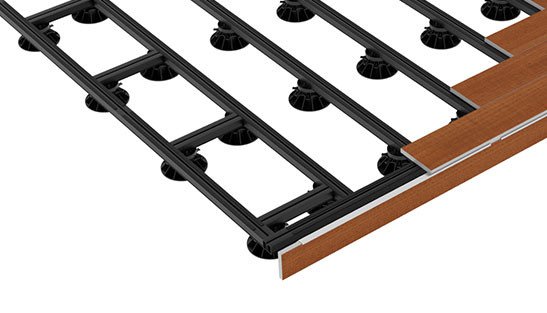

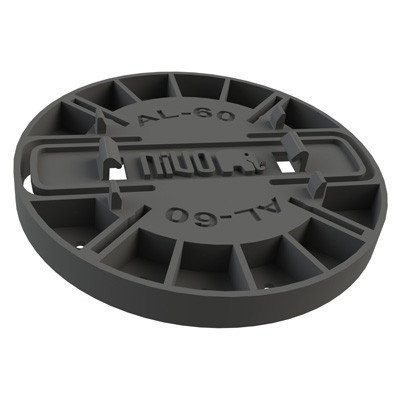

The over-pedestal for NIVO® tiles makes it possible to clip on aluminium joists of the StructurAL® range.
Optional: the NIVO® over-pedestal to clip on StructurAL® aluminium joists
NIVO® tile pedestals may be equipped with a 1 cm thick "Over-pedestal" which fits on the pedestal head between lugs and easily clips on and clips off StructurAL®
